Cut perfectly squared binding ledges on any instrument, including archtops.

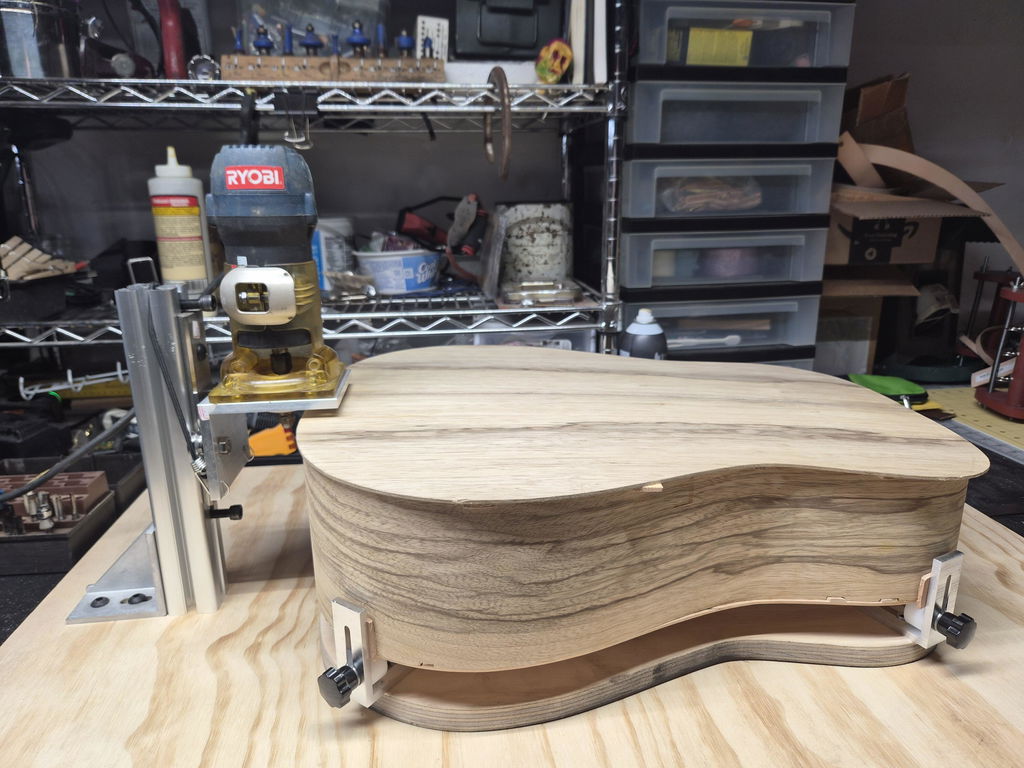

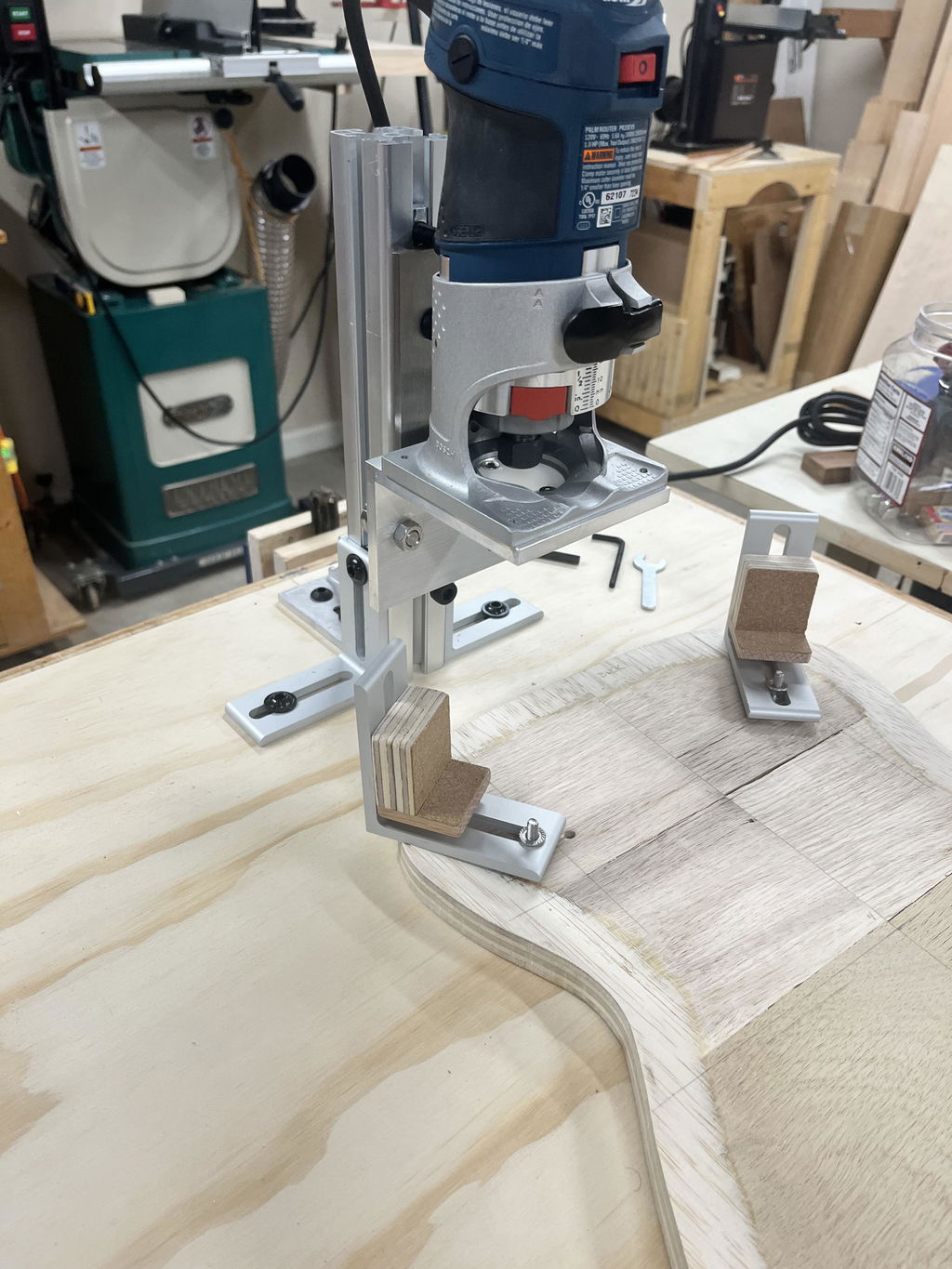

This jig turns your laminate router into a floating cutter. As you move the body of the instrument into the cutter, your router glides vertically to follow the body's top edge. Bindings fit correctly, so you won't have to scrape them too thin.
The problem: The arch of the guitar top, and especially the back, will change the router alignment. Without this tool, a standard router base will tilt, causing the routed channel to be too deep or too shallow; the bindings won't fit right. The Binding Router Jig keeps the router vertical for a square ledge. Bindings fit correctly.
Every parts in the first picture is included.
Make your own body cradle: We don't have the plywood Body Cradle, so you can build your own custom shape.
The mounting holes of the jig carriage fits the popular Bosch Colt Router. You can also use other common laminate trimmers too, if it doesn't line up with the mounting holes, then the Router Mounting Template is what you need, it can help locate and drill new holes on the carriage.
InstructionView Instruction for Binding Router Jig
